Alan's Truck Body Build Up

Here is Page 5 of Alan's latest build up.
A new bed for an S-10.

24
Click on the picture for a larger view.

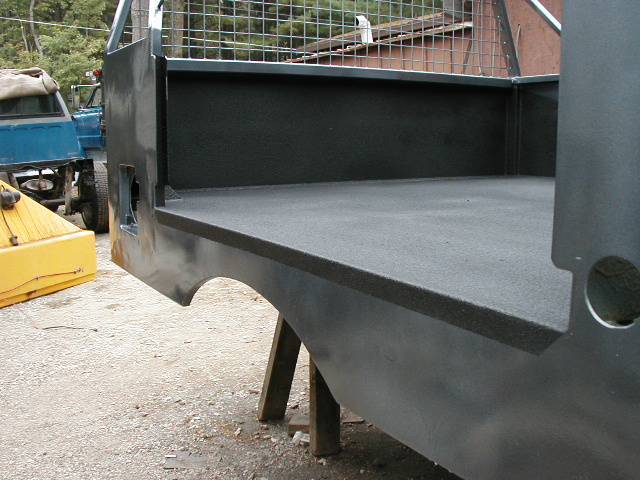

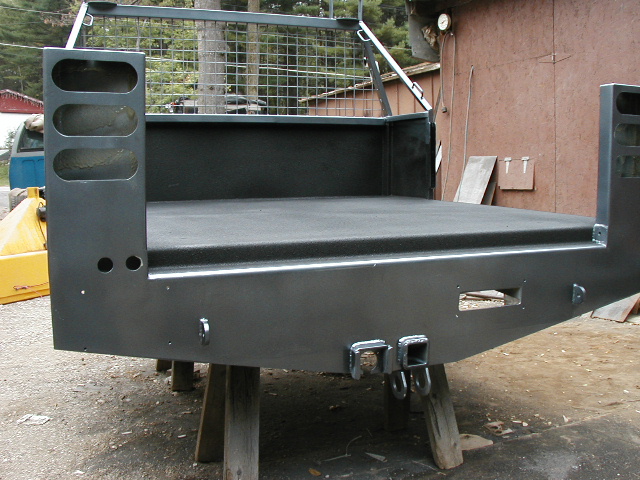

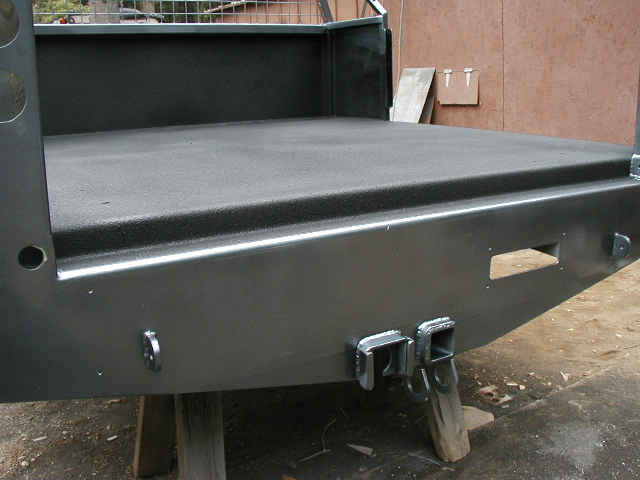

Pictures 24, 25, & 26 - PAINTED!!! Finally! The bed floor has a coat of Dupli-Color do it yourself bed liner, NOT a very good product. I wouldn't use it again. By the time this was finished I had put 2 gallons of material on the floor to get a decent coating, and even then I have my doubts about how well it is going to hold up.

25
Click on the picture for a larger view.

26

Click on the picture for a larger view.

_____________________________________________________

27
Click picture for a larger view.

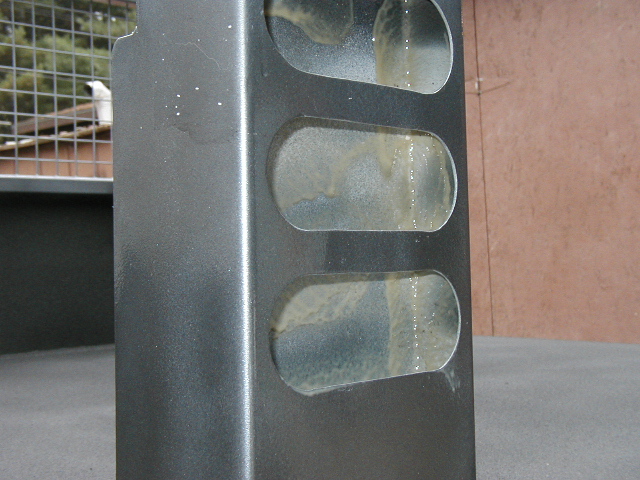

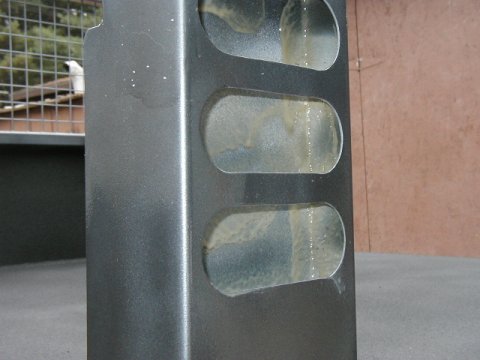

Picture 27- Inside of the corner posts got a healthy coating of rust proofing over as much primer as I could get down inside there. NOT a good place to get paint into but the rust proofing sprayer had no problem at all.

____________________________________________

28
Click on the picture for a larger view.

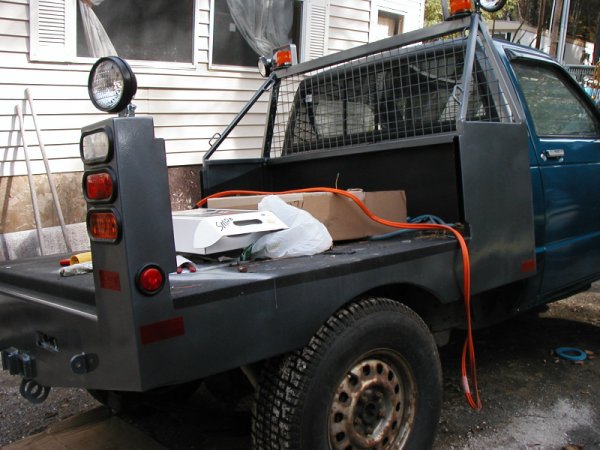

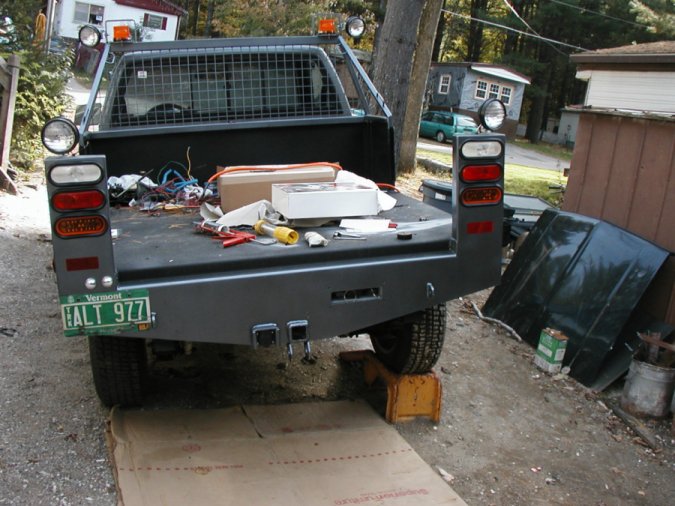

Picture 28 & 29 - Lights are installed and wired. Plenty of rear lighting and flashers at four points, two up top and two LED flashers in the corner posts. It makes a pretty good workbench at this point. The orange cable laying in the bed is the power lead for the pull plow, which is going in next.

29

Click on the picture for a larger view
________________________________________________________________

More on Page 6
